Revamping LPG Storage
New storage facility on an LPG site in Aveyron.
Realization of scanner surveys, studies, prefabrication in workshop of piping, boiler making and carpentry, assembly and management of site and subcontractors.
Identity card
Sector
Gaz
Location
Calmont (12)
Type of project
Studies / Prefabrication / Assembly
Delivered on
September 2020
Revamping LPG Storage
Studies, scanner readings, prefabrication, assembly :
- Studies, 3D scanner surveys of the site

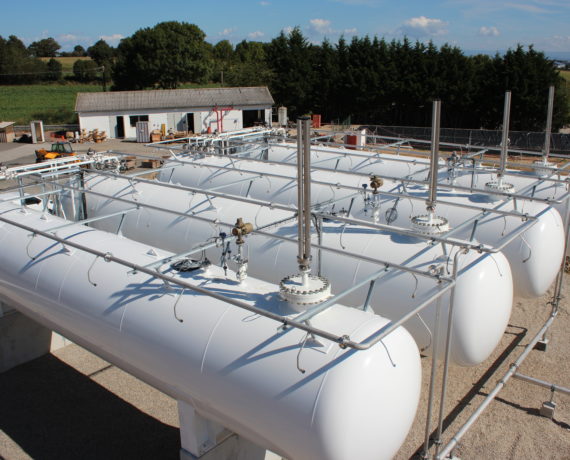

- Scanner readings of the 4 120M3 tanks for verification of conformity to the manufacturing plans
- Realization of the complete 3D model of the installation
- Realization of manufacturing plans and assembly of piping, frames and support structures
- Realization of the layout plans of the GC and equipment (pumps, compressors…)
- Prefabrication and installation of 450 meters of LPG piping DN50 and DN80
- 11 Piping subject to DESP II
- 4 LPG purge tanks DESP IV
- 150 meters of DN25 valve collection pipework
- 75 meters of stainless steel hydraulic piping DN15
- Complete installation of the pump house (pumps, compressor and hydraulic skid)
- Prefabrication and installation of 2 frames and all pipe supports
- Prefabrication and installation of fire crowns and supports
